Motherboard Asus Tuf Gaming B660m-plus Wifi D4 S17

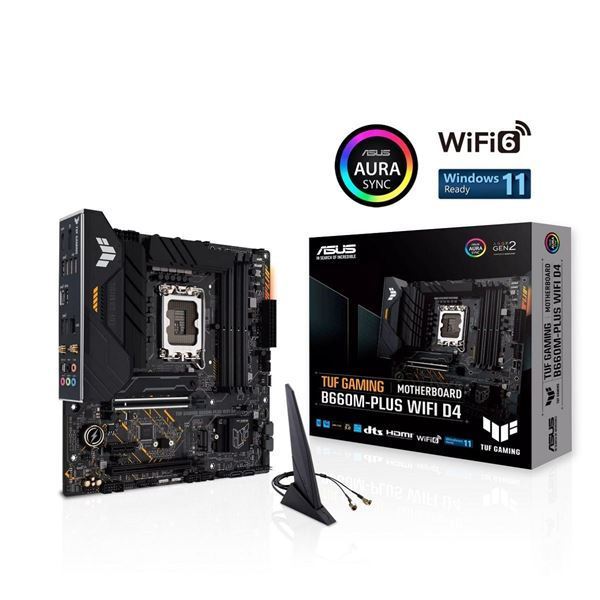

Imagen de Motherboard Asus Tuf Gaming B660m-plus Wifi D4 S17

Marca: Asus

P/N: 90MB1930-M0EAY0

Precio anterior: U$S 305,46

Precio: U$S 293,24

Precio BROU

U$S 263,92

IVA incluido

Cantidad: decrease increase

Tiempo de despacho estimado en el día a 24hs. [ver detalles]

Detalles técnicos

Marca	Asus
Part Number	90MB1930-M0EAY0
CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* Refer to www.asus.com for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B660 Chipset
Memoria	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem IIActual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
Gráficos	1 x DisplayPort1 x HDMI® portGraphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4.*Supports 4K@60Hz as specified in HDMI 2.1.** VGA resolution support depends on processors' resolution.
Lan	TUF LANGuard1 x Realtek 2.5Gb Ethernet TUF LANGuard
Ranuras de expansión	Intel® 12th Gen Processors1 x PCIe 5.0 x16 slotIntel® B660 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Conectores	Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ header
Panel Trasero E/s	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port
Formato	microATX24.4cm x 24.4cm
Zócalos compatibles	S 1700
Almacenamiento	Supports 2 x M.2 slots and 4 x SATA 6Gb/s portsTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Intel® 12th Gen processors support PCIe 4.0 x4 mode.Intel® B660 Chipset*M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
RAID	Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
