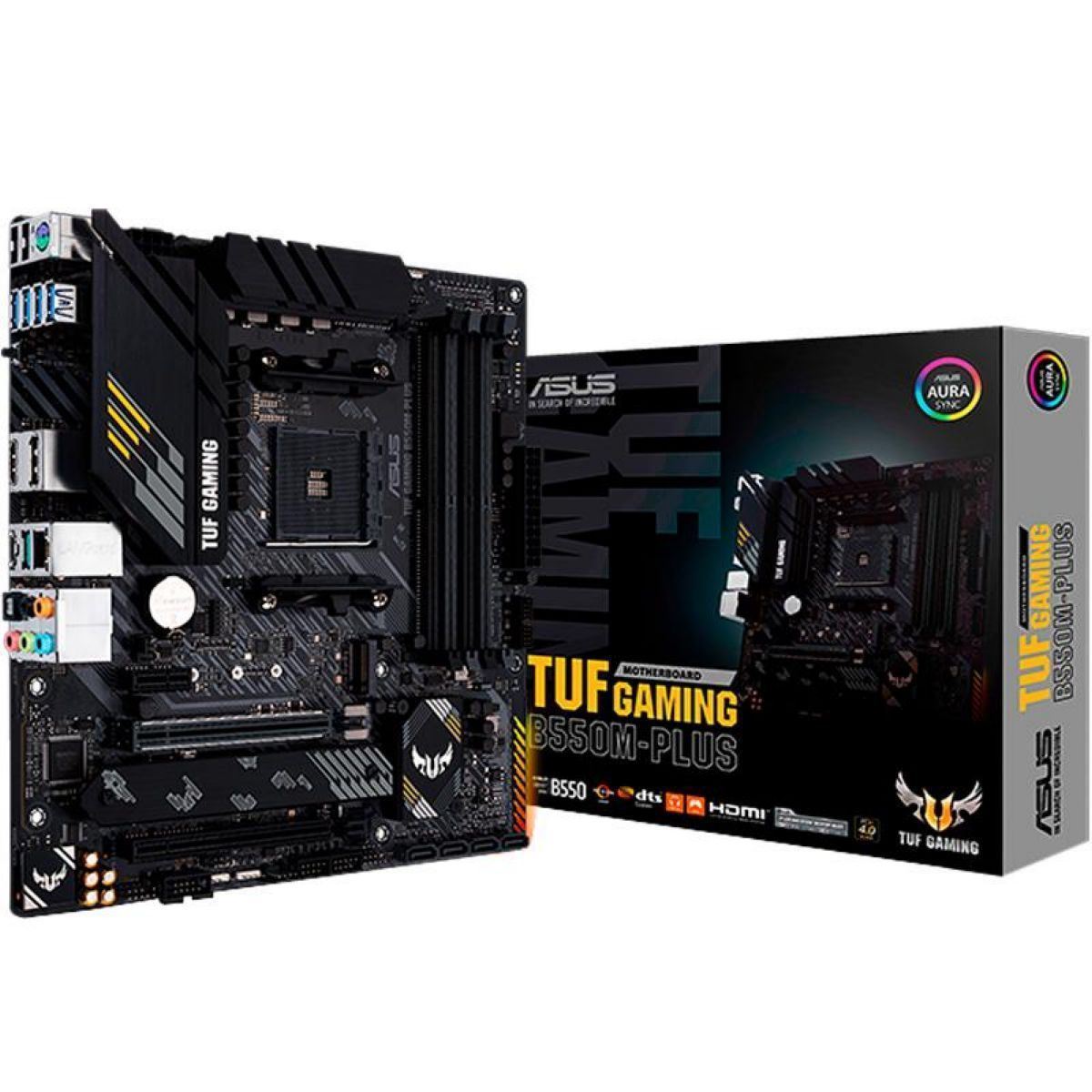

Asus B550m Plus Tuf Gaming Amd Am4

Lo sentimos - este producto no está disponible

Asus B550m Plus Tuf Gaming Amd Am4
Marca: Asus
P/N: B550m Plus Tuf Gaming
U$S 270,54
U$S 257,55
U$S 231,79 Precio BROU
IVA incluido
decrease increase

Tarjeta Madre para juegos micro ATX AMD B550 (Ryzen AM4) con PCIe 4.0, M.2 dual, 10 fases de poder DrMOS, Ethernet de 2.5 Gb, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Tipo-A y Tipo-C, y compatible con Aura RGB Sync RGB

Detalles técnicos
Socket Socket AM4
Marca Asus
Part Number
CPU Build in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors
Chipset AMD B550
Memoria 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *ECC Memory (ECC mode) support varies by CPU.
Bios 256 Mb Flash ROM, UEFI AMI BIOS
Gráficos 1 x DisplayPort 1.21 x HDMI 2.1(4K@60HZ)
Lan Realtek RTL8125B 2.5Gb EthernetTUF LANGuard
Ranuras de expansión 1 x PCIe 4.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1
Conectores 1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 4.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connector
Panel Trasero E/s 1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s)
Caract. Especiales ASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB header
Accesorios User´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s)
Formato mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Zócalos compatibles AMD AM4
Almacenamiento 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s)
RAID Support Raid 0, 1, 10
Slots 1 x PCIe 4.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1
USB Rear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)(2 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A)
Condición del ítem Nuevo

Tarjeta Madre para juegos micro ATX AMD B550 (Ryzen AM4) con PCIe 4.0, M.2 dual, 10 fases de poder DrMOS, Ethernet de 2.5 Gb, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Tipo-A y Tipo-C, y compatible con Aura RGB Sync RGB
