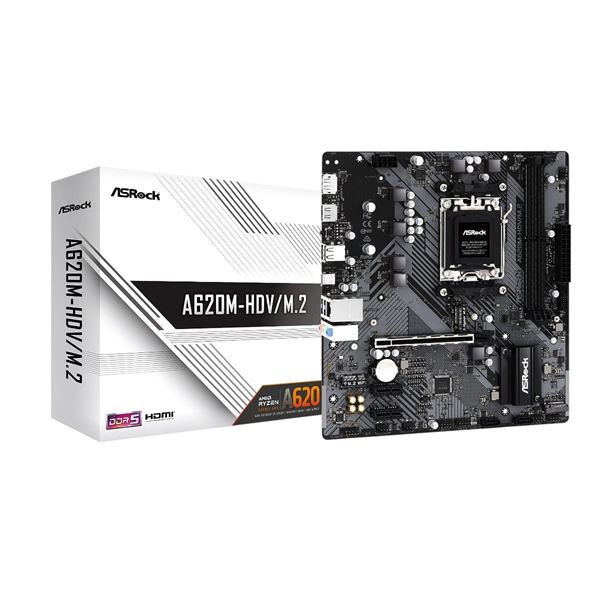

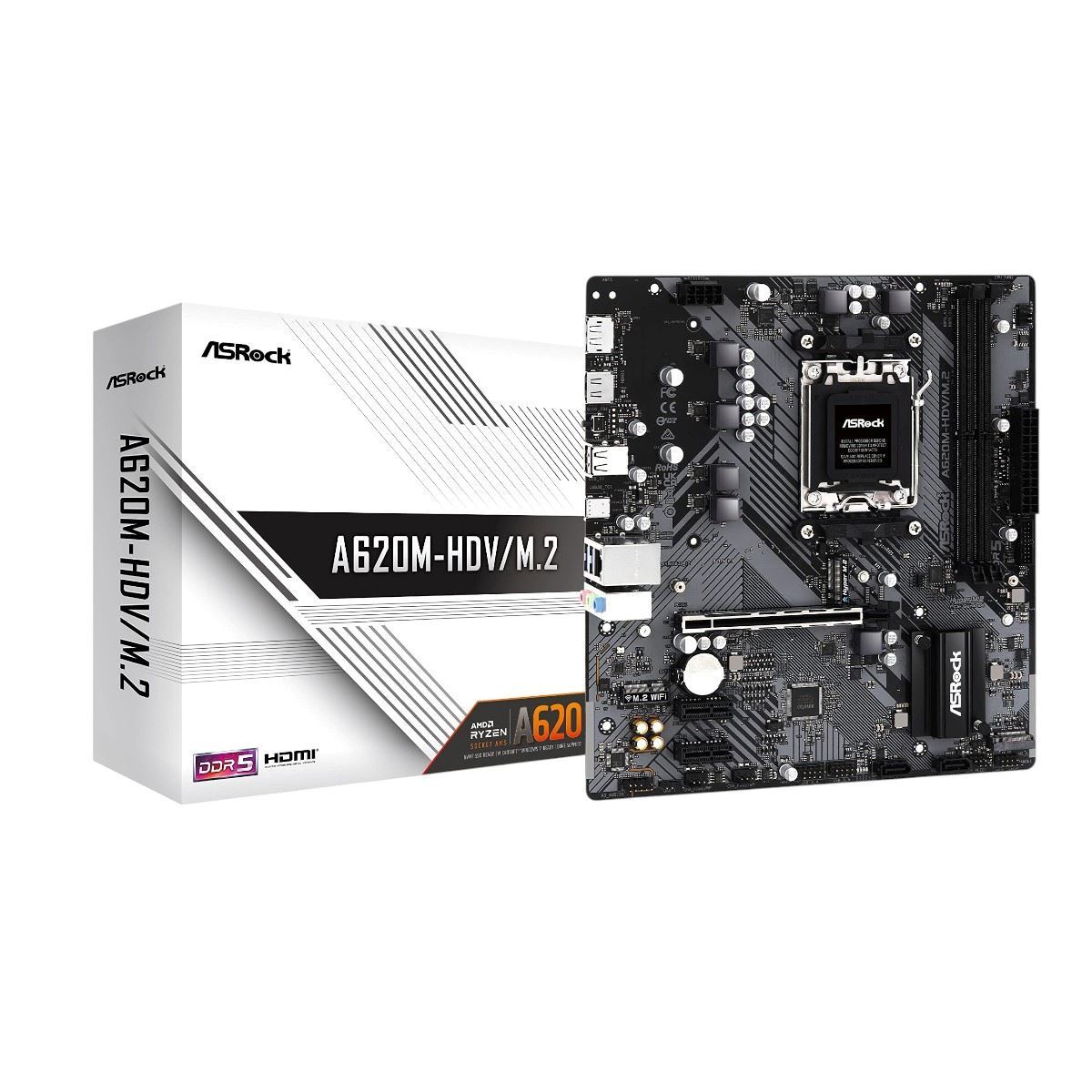

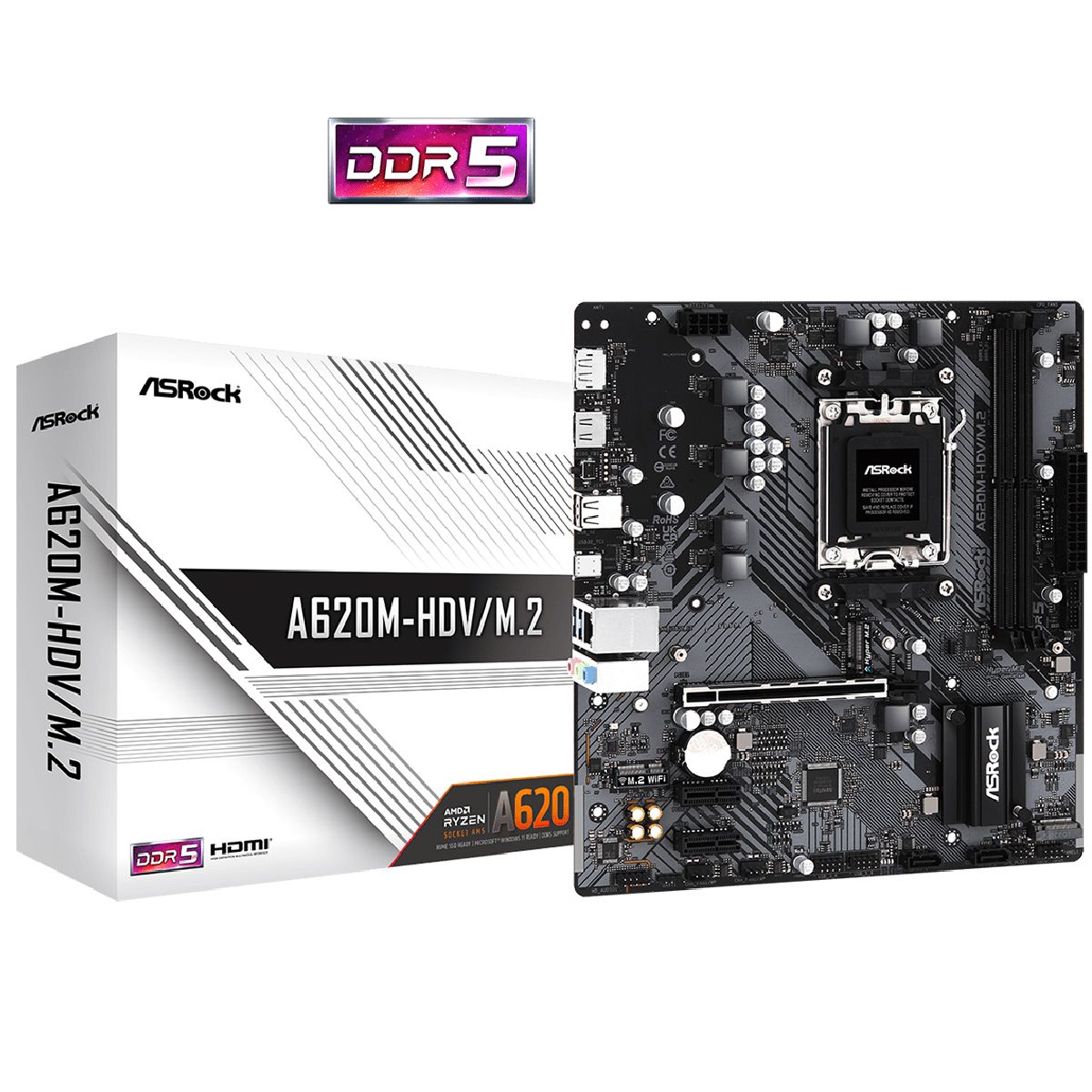

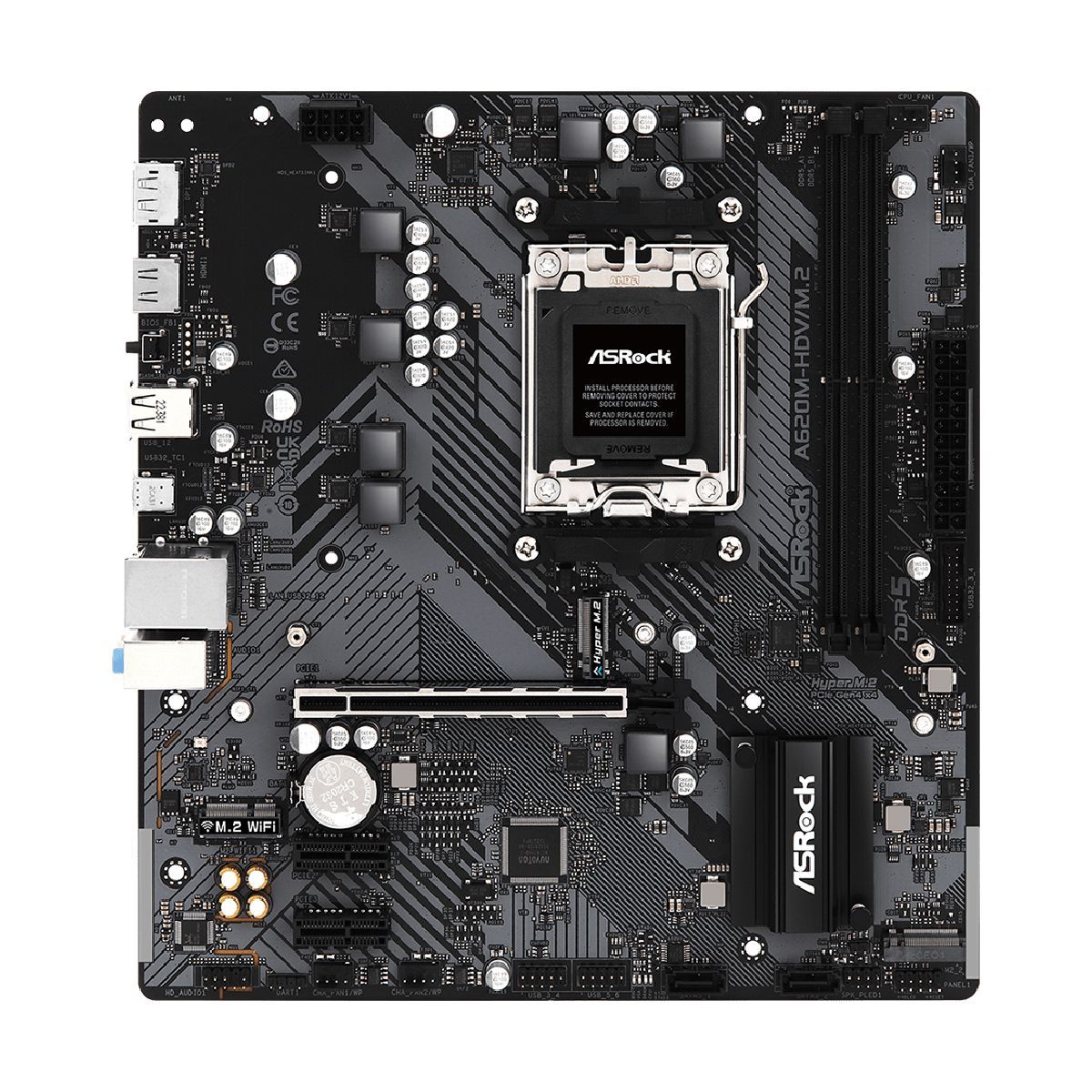

Motherboard Asrock A620m Hdv/m.2 Ddr5 Am5

CPU - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors*
Chipset - AMD A620
Memoria - Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots

- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

- Max. capacity of system memory: 96GB

- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

*Please refer to Memory Support List for more information.

Gráficos Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN - Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H

Ranuras de Expansión CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- 15µ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks

Conectores - 1 x SPI TPM Header
- 1 x Power LED and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1~3/WP support the fan power up to 2A (24W).

CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

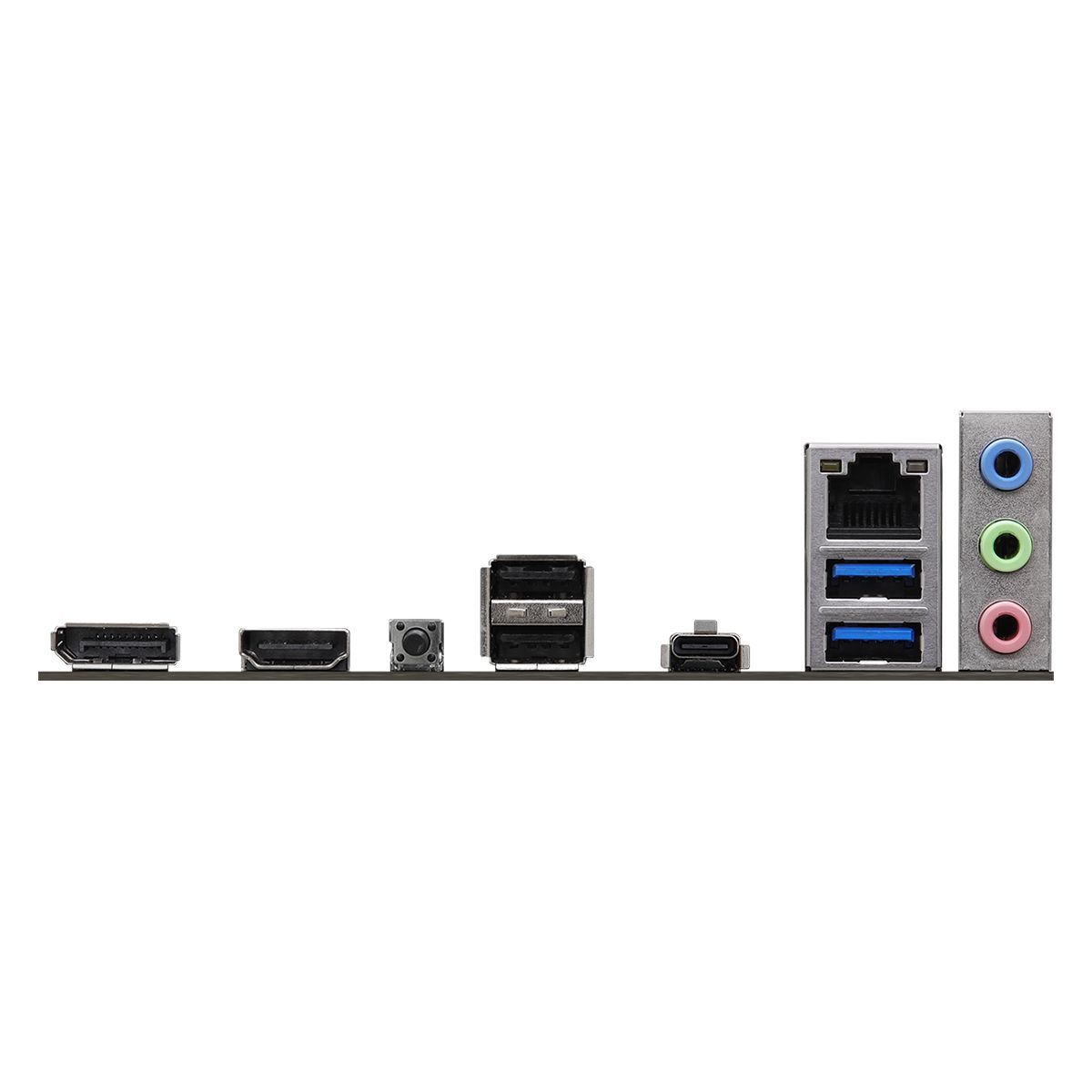

Panel trasero E/S - 2 x Antenna Mounting Points
- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 1 x USB 3.2 Gen1 Type-C Port

- 3 x USB 3.2 Gen1 Type-A Ports

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- 1 x BIOS Flashback Button

- HD Audio Jacks: Line in / Front Speaker / Microphone

Formato - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
Socket AM5
Almacenamiento CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion cards to support RAID 10
